50W Picosecond IR Laser

The 50W picosecond infrared laser is an industrial-grade ultrafast laser that uses a fiber seed source combined with solid-state amplification technology. It adopts an all-in-one machine design, the main body is completely sealed in a closed cavity, and multiple sensor monitors are installed inside, which ensures the stability and reliability of the laser, and is suitable for 7-day/24-hour industrial precision machining applications.

Main features:

Stable output power and pulse energy

Compact Design

High Beam Quality

Pulse Width:

<15ps

Max Energy:

>500μJ@100kHz at burst counts 4 >800 μJ customized

Power:

>50W@100kHz at burst counts 4

Application:

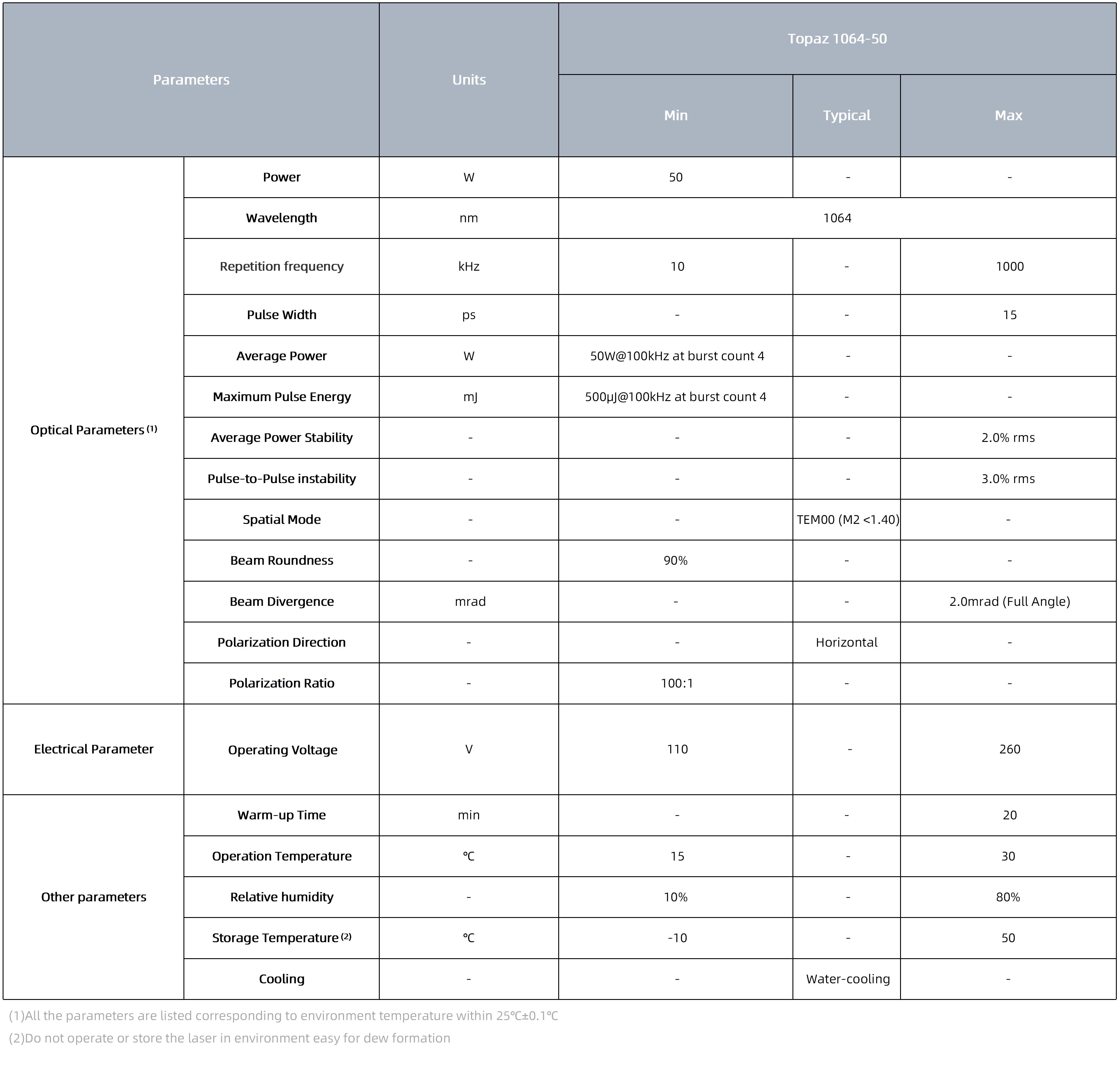

Performance Parameter

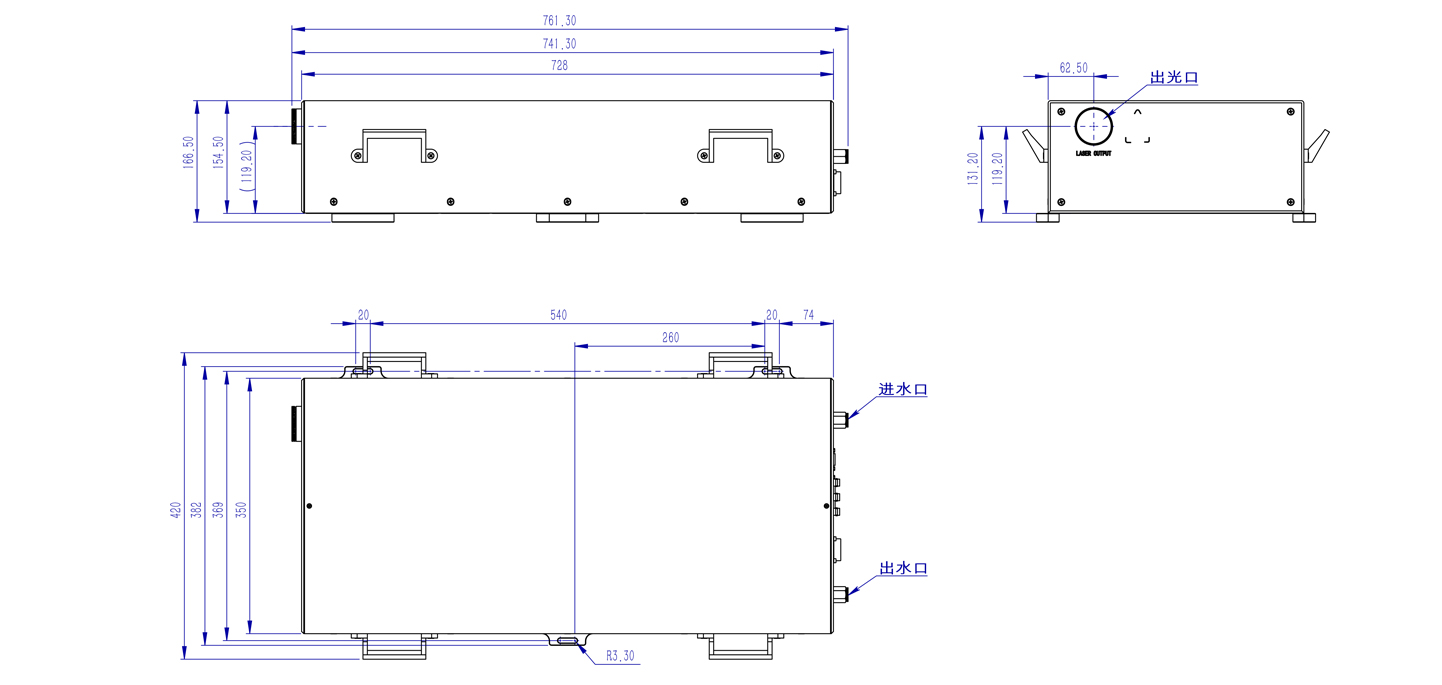

Structure Size (mm)

Application
