75W Picosecond IR Laser

The 75W infrared picosecond laser is an industrial-grade ultrafast laser that uses a fiber seed source combined with solid-state amplification technology. It adopts an all-in-one machine design, the main body is completely sealed in a closed cavity, and there are multiple sensor monitors inside, which ensures the stability and reliability of the laser, and is suitable for 7 X 24 hours of industrial precision machining applications.

Main features:

Stable output power and pulse energy

Compact Design

High Beam Quality

Pulse Width:

<15ps

Max Energy:

>750μJ@100kHz at burst counts 4 2mJ customized

Power:

﹥75W@100kHz at burst counts 4

Application:

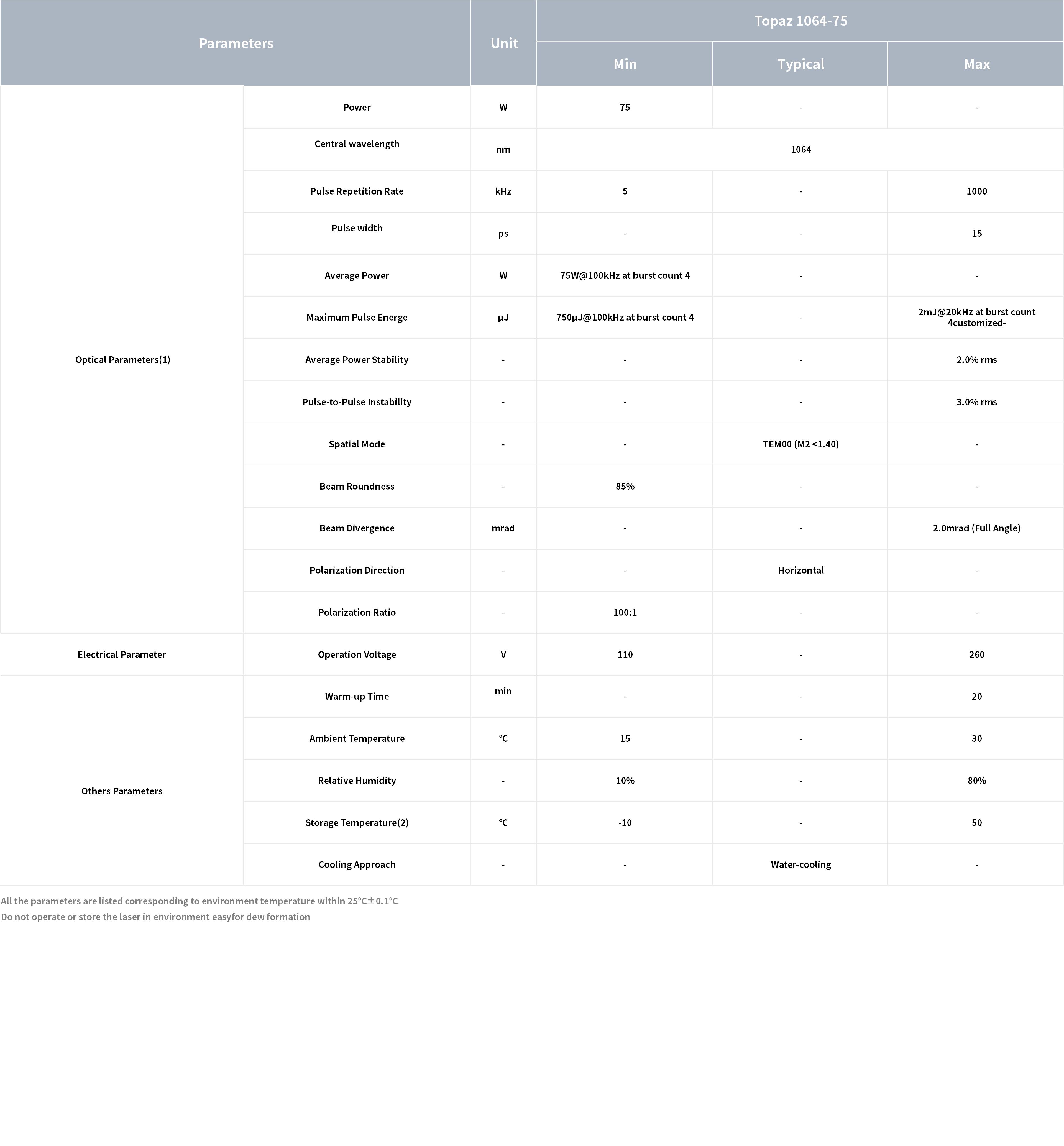

Performance Parameter

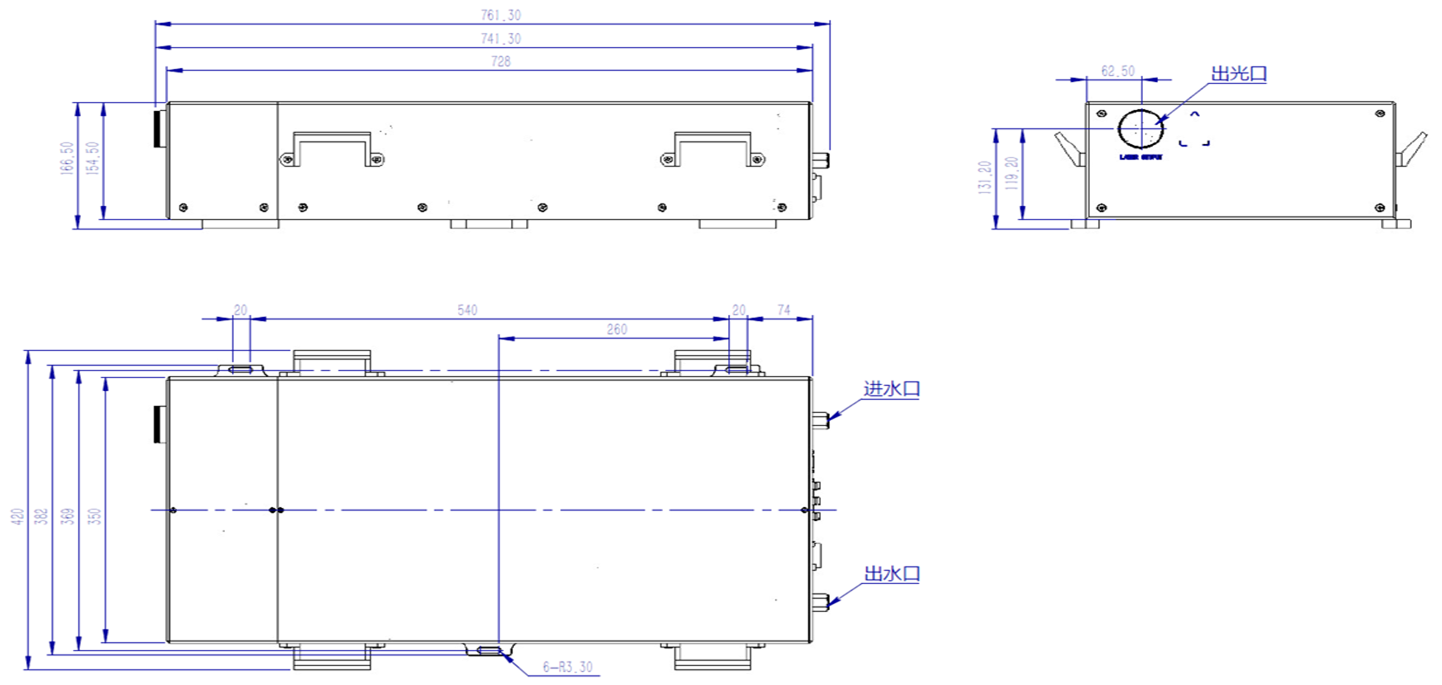

Structure Size (mm)

Application
