10W Picosecond IR Laser
The 10W picosecond infrared laser adopts an all-in-one design, which is compact in structure, good in stability, high in reliability and easy to use. The whole machine adopts picosecond fiber seed source and free space solid amplifier to achieve high-power picosecond laser output. The self-developed fiber seed source has more flexible output parameters and better stability than traditional solid seed sources. The space solid-state amplifier can guarantee the output of high peak power laser. This type of product is commonly used in high-precision cutting of glass materials of about 1mm, such as: LCD/LED/OLED display panel cutting and other processing fieldsMain features：
Stable output power and pulse energy
Compact Design
High Beam Quality
Pulse Width：
<15ps
Max Energy：
>100μJ@100KHz
Power：
>10W@100KHz
Application：

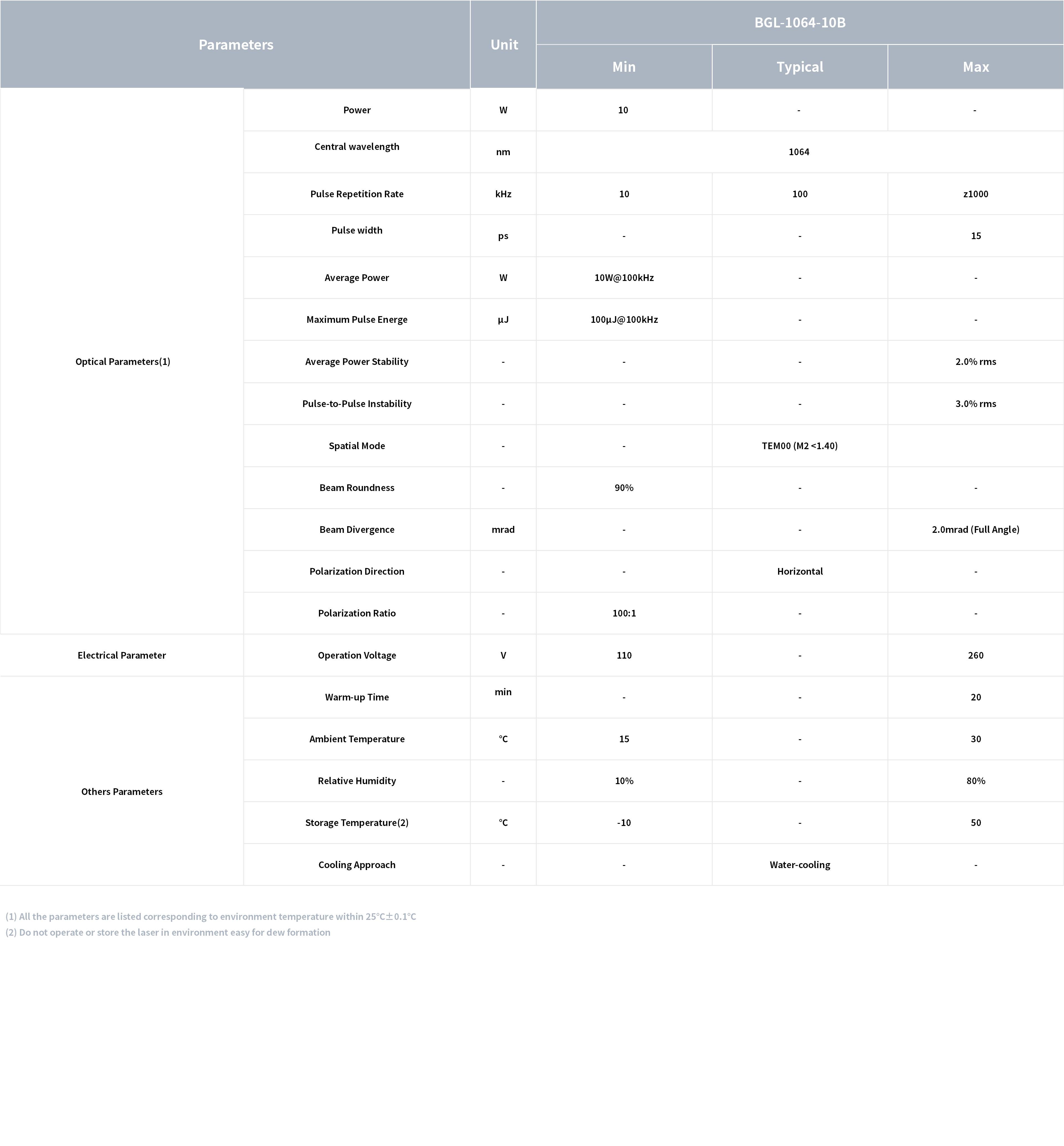

Performance Parameter

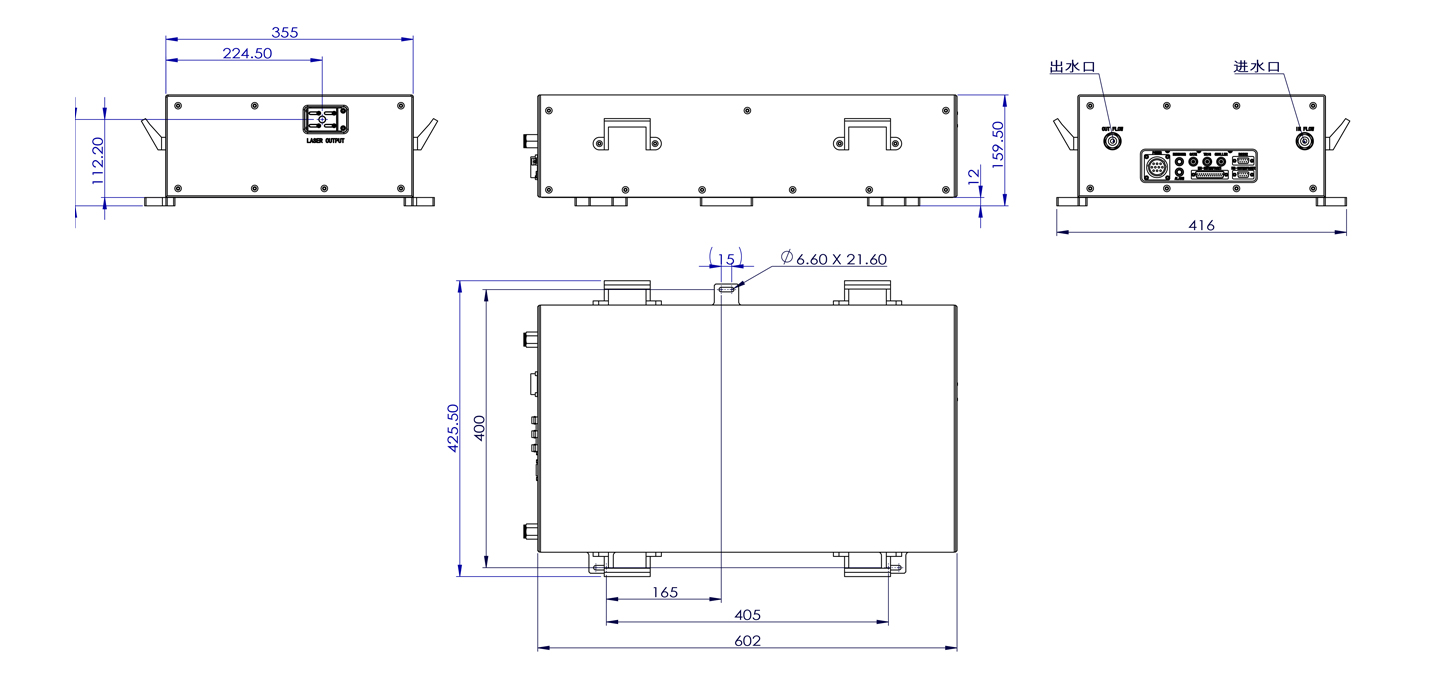

Structure Size (mm)
