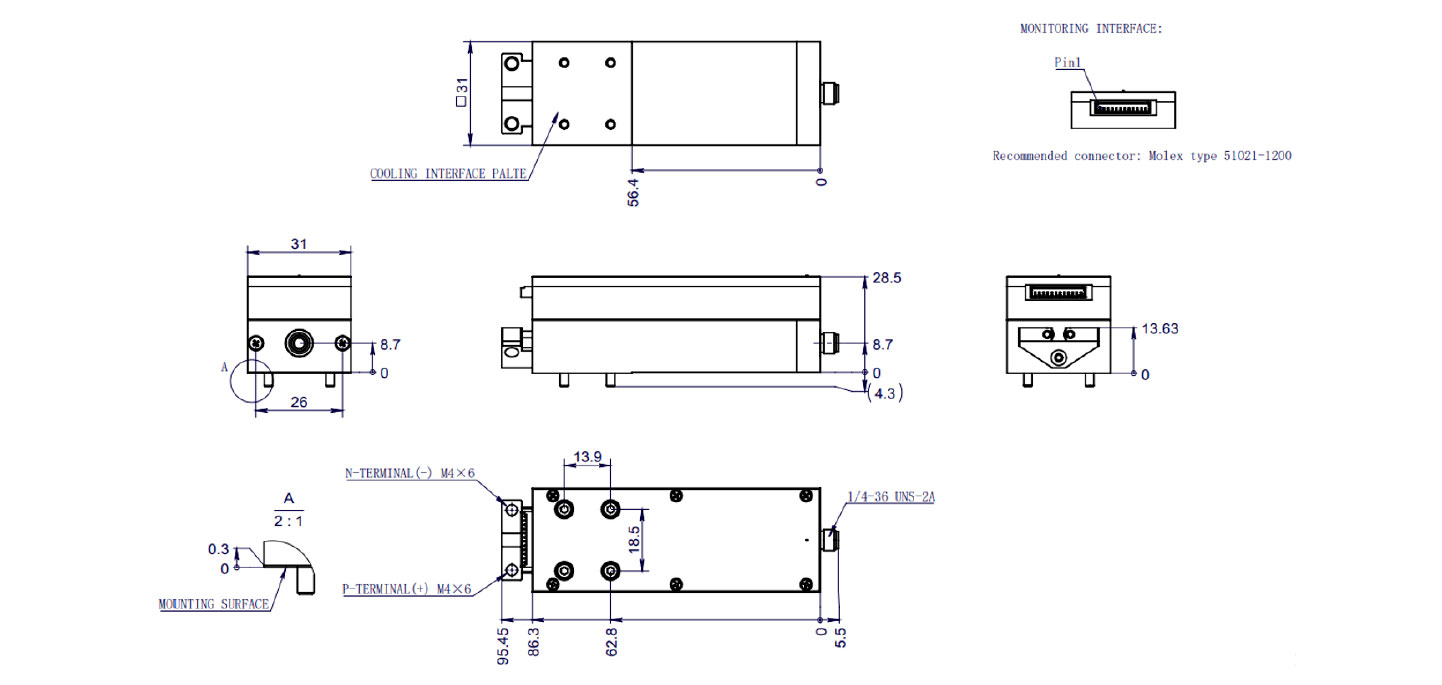

Conduction Cooled Single Bar Fiber Coupled Module

BWT bar array products can be customized according to customer requirements and utilize packaging technologies with indium solder or AuSn solder, offering advantages such as high reliability, high photoelectric conversion efficiency, excellent stability, superior beam quality, low smile effect, and narrow linewidth. The products cover a wide range of wavelengths and power levels, with wavelengths ranging from 630nm to 1550nm and power levels from watt-class up to continuous 250W and quasi-continuous 500W.
A variety of structures are available to choose from, including conduction cooling, microchannel cooling, and macrochannel cooling methods. Packaging structures include single bar, vertical stack, horizontal line array, 2D planar array, and fiber-coupled products.Optical options include fast/slow axis collimation, VBG wavelength locking, beam transformation systems (BTS), beam combining, spot homogenization, and integrated laser head design. The products are characterized by low divergence angles and high directivity.

Main features：

Application：
