660nm-2W
BWT, founded in 2003, is committed to the mission of "let the dream drive the light", the vision ofbecoming the "Global leader in laser solutions", and the value of "Outstanding innovation", providingdiode laser, fiber laser, ultra-fast laser products and solutions to global customers.The company pursues continuous innovation and insists on autonomous and controllable advancedprocess and technology. With Beijing headquarters as the core, BWT has successively establishedproduction and R&D centers in Jiangsu, and Shenzhen, and Invested in the construction of an automatedand intelligent production base in Tianjin. To build a high level of technical strength and product quality,BWT set up a German subsidiary in 2020, and taking a solid step for the internationalization of R&D,production and technological innovation.Main features：
wavelength
660nm
Output power
2W
Fiber core diameter
105μm
Optical fiber numerical aperture
0.22 NA
Application：

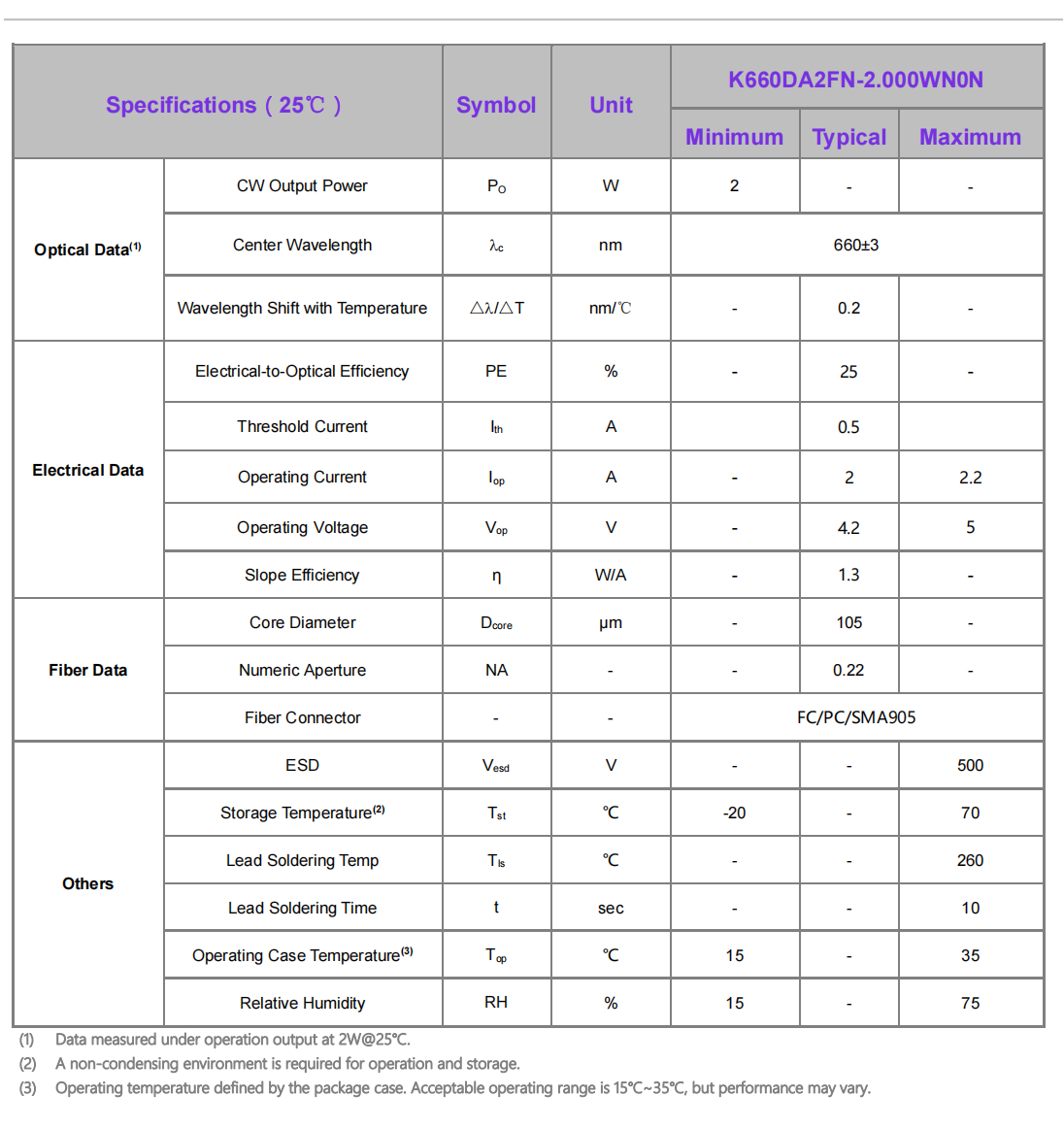

Performance Parameter

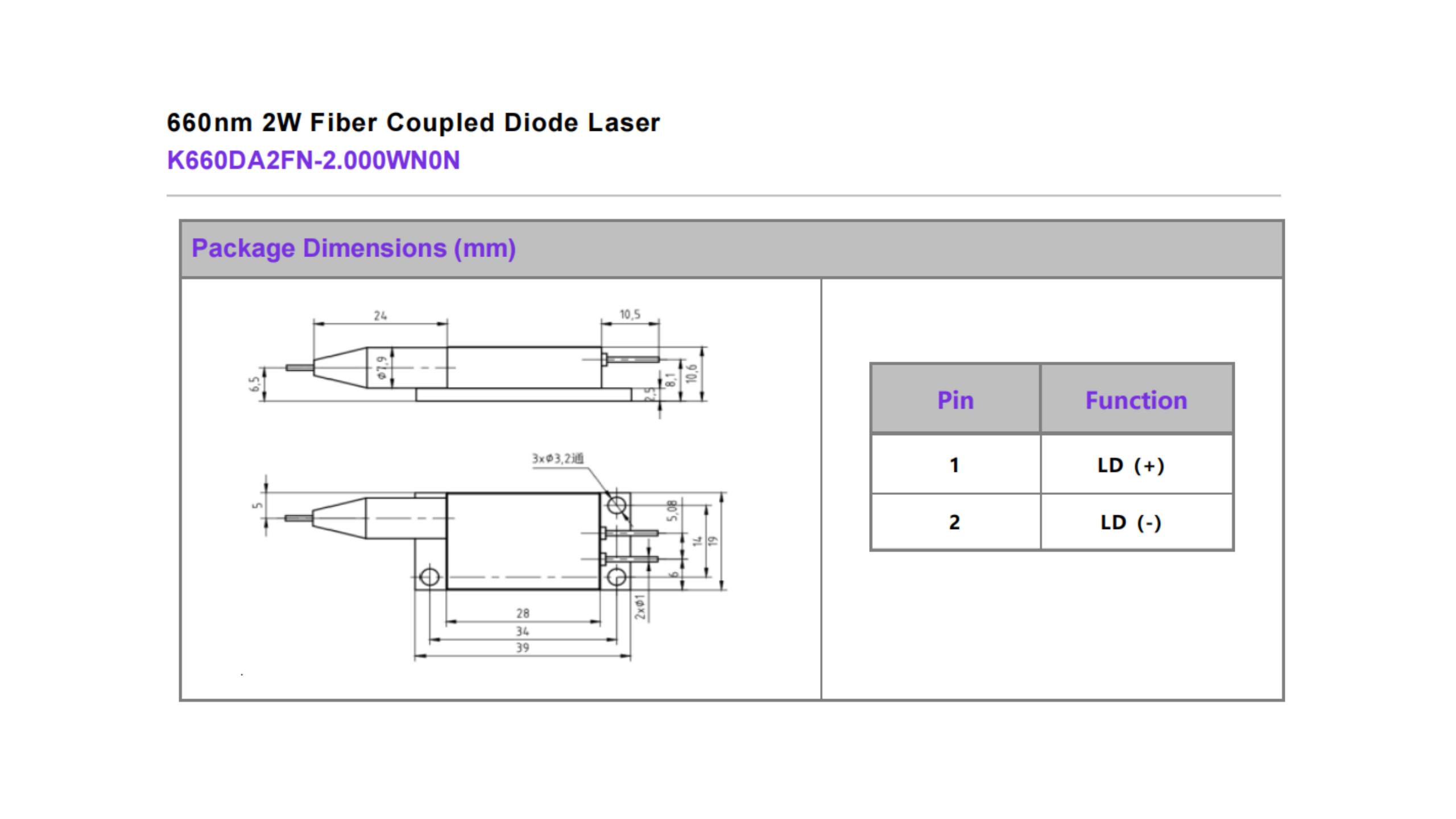

Structure Size (mm)
Instructions for use
Avoid eye and skin exposure to direct radiation during operation.
ESD precautions must betaken during storage, transportation and operation.
Short-circuit is required between pins during storage and transportation.
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second. cutting the fiber.
Laser diode must work with good cooling.
Operation temperature ranges from 15℃ to 35℃ .
Storage temperature ranges from -20℃ to +70℃.
