638nm-4W

BWT, founded in 2003, is committed to the mission of "let the dream drive the light", the vision of becoming the "Global leader in laser solutions", and the value of "Outstanding innovation", providing diode laser, fiber laser, ultra-fast laser products and solutions to global customers.The company pursues continuous innovation and insists on autonomous and controllable advanced process and technology. With Beijing headquarters as the core, BWT has successively established production and R&D centers in Jiangsu, and Shenzhen, and Invested in the construction of an automated and intelligent production base in Tianjin. To build a high level of technical strength and product quality, BWT set up a German subsidiary in 2020, and taking a solid step for the internationalization of R&D, production and technological innovation.

Main features:

Red laser ( R )

638+/-10nm 4W

Green laser ( G )

525+/-10nm 4W

Blue laser ( B )

455+/-10nm 2W

core diameter fiber coupled

400μm

Optical fiber numerical aperture

0.22 NA

Application:

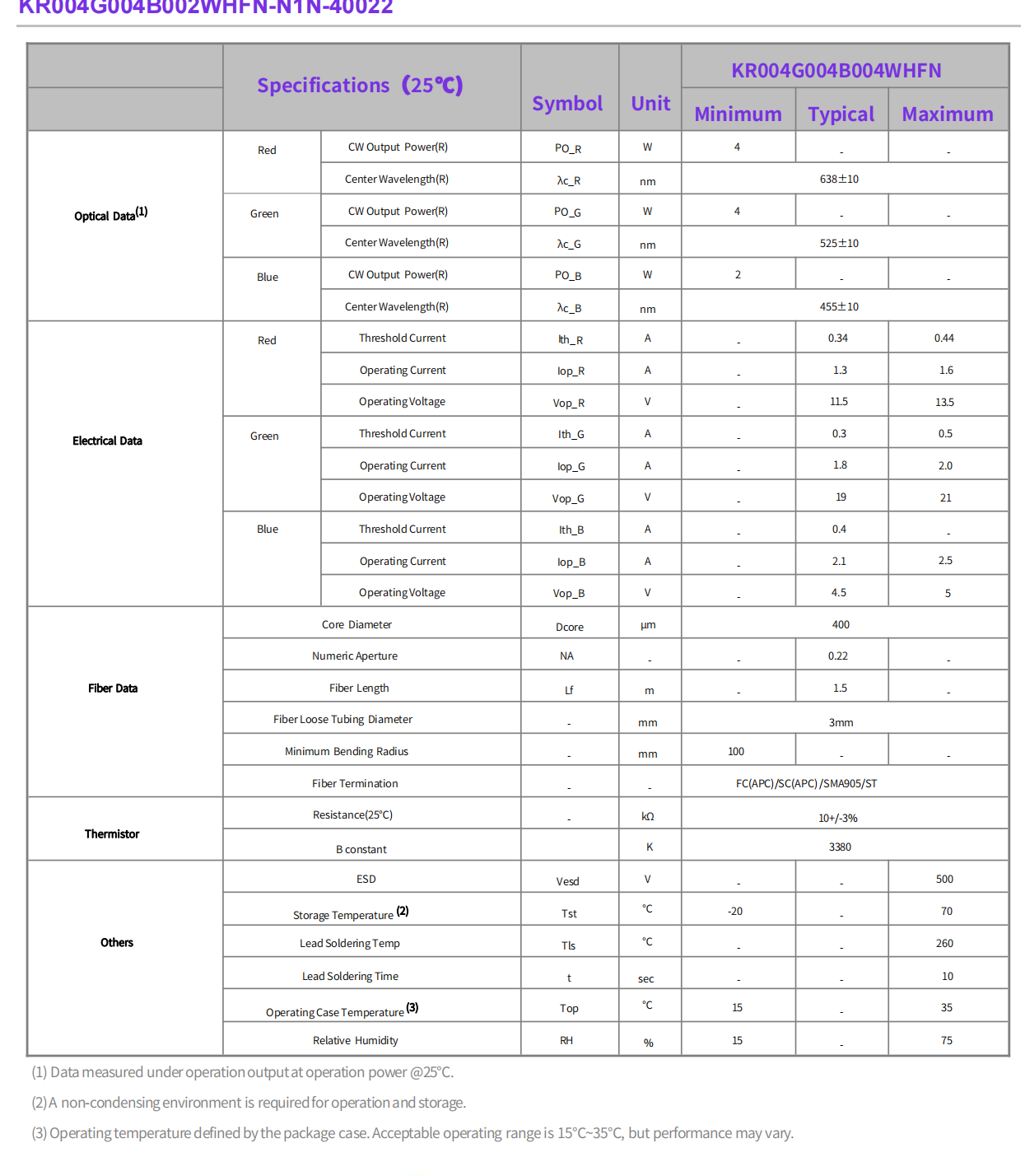

Performance Parameter

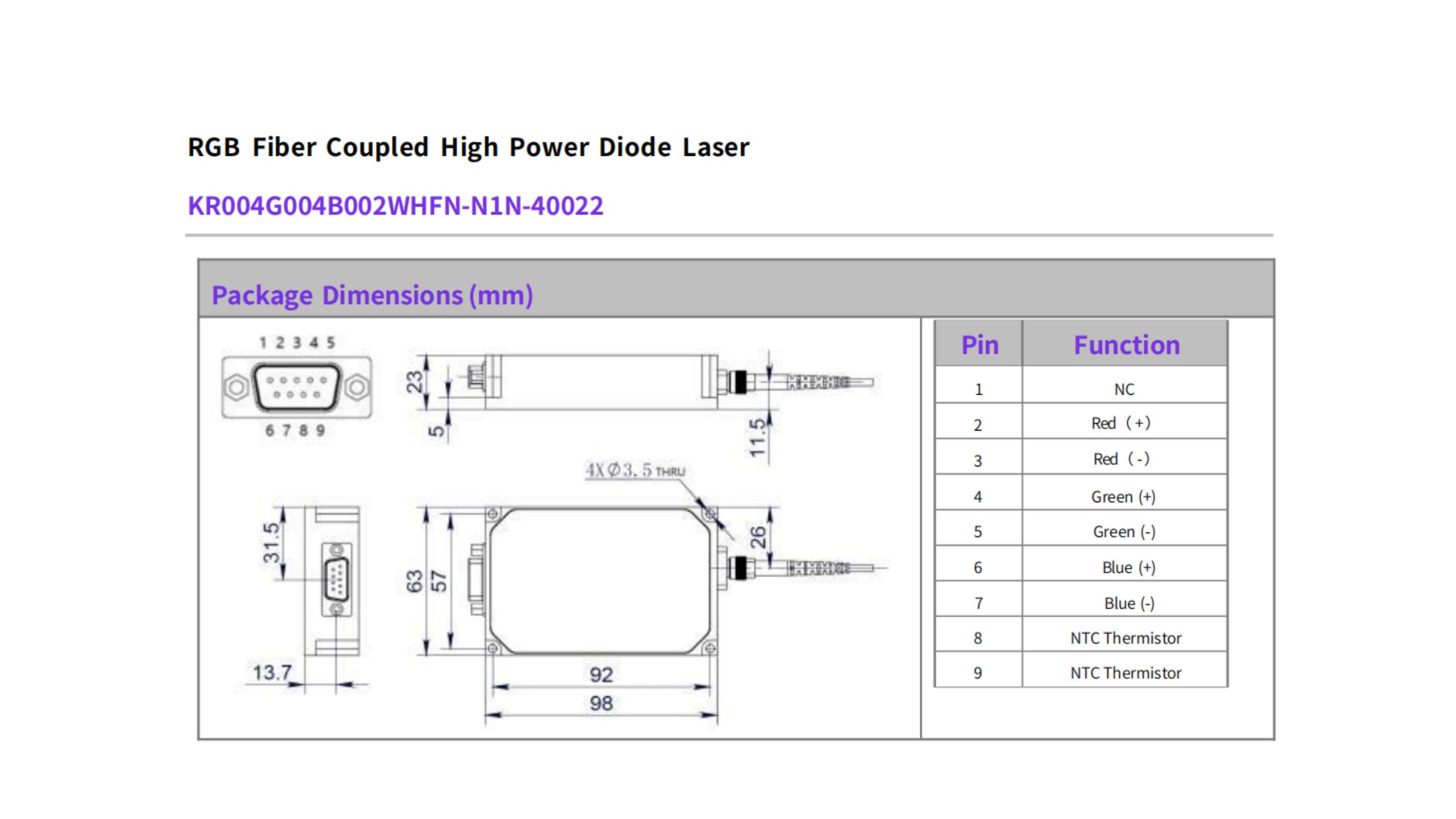

Structure Size (mm)

Instructions for use

Avoid eye and skin exposure to direct radiation during operation.
ESD precautions must betaken during storage, transportation and operation.
Short-circuit is required between pins during storage and transportation.
Please connect pins to wires by solder instead of using socket when operation current is higherthan 6A. Soldering point should be
close to the middle of the pins. Soldering temperature should be lowerthan 260℃ and time shorter than 10 second.
Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when
handling and cutting the fiber.
Use constant current power supply to avoid surge current during operation.
Laser diode must be used according to the specifications.
Laser diode must work with good cooling.
Operation temperature ranges from 15℃ to 35℃ .
Storage temperature ranges from -20℃ to +70℃.
