793nm-260W
BWT, founded in 2003, is committed to the mission of "let the dream drive the light", the vision ofbecoming the "Global leader in laser solutions", and the value of "Outstanding innovation", providing diodelaser, fiber laser, ultra-fast laser products and solutions to global customers. The company pursues continuous innovation and insists on autonomous and controllable advancedprocess and technology. With Beijing headquarters as the core, BWT has successively establishedproduction and R&D centers in Jiangsu, and Shenzhen, and invested in the construction of an intelligent anddigital production base in Tianjin. To build a high level of technical strength and producquality, BWT set up aGerman subsidiary in 2020, introducing European quality standards, and taking a solid step for theinternationalization of R&D, production and technological innovation. Up to now, BWT has traded more than 10 million lasers worldwide. BWT’s products are available inmore than 70 countries and regions, with applications involving industry, medical, commercial, scientificresearch, information, and many other fields.
Main features：
Wavelength
793±3nm
Output power
260W
Fiber core diameter
200μm
Optical fiber numerical aperture
0.22 NA
Feedback protection
1900nm~2100nm
Application：

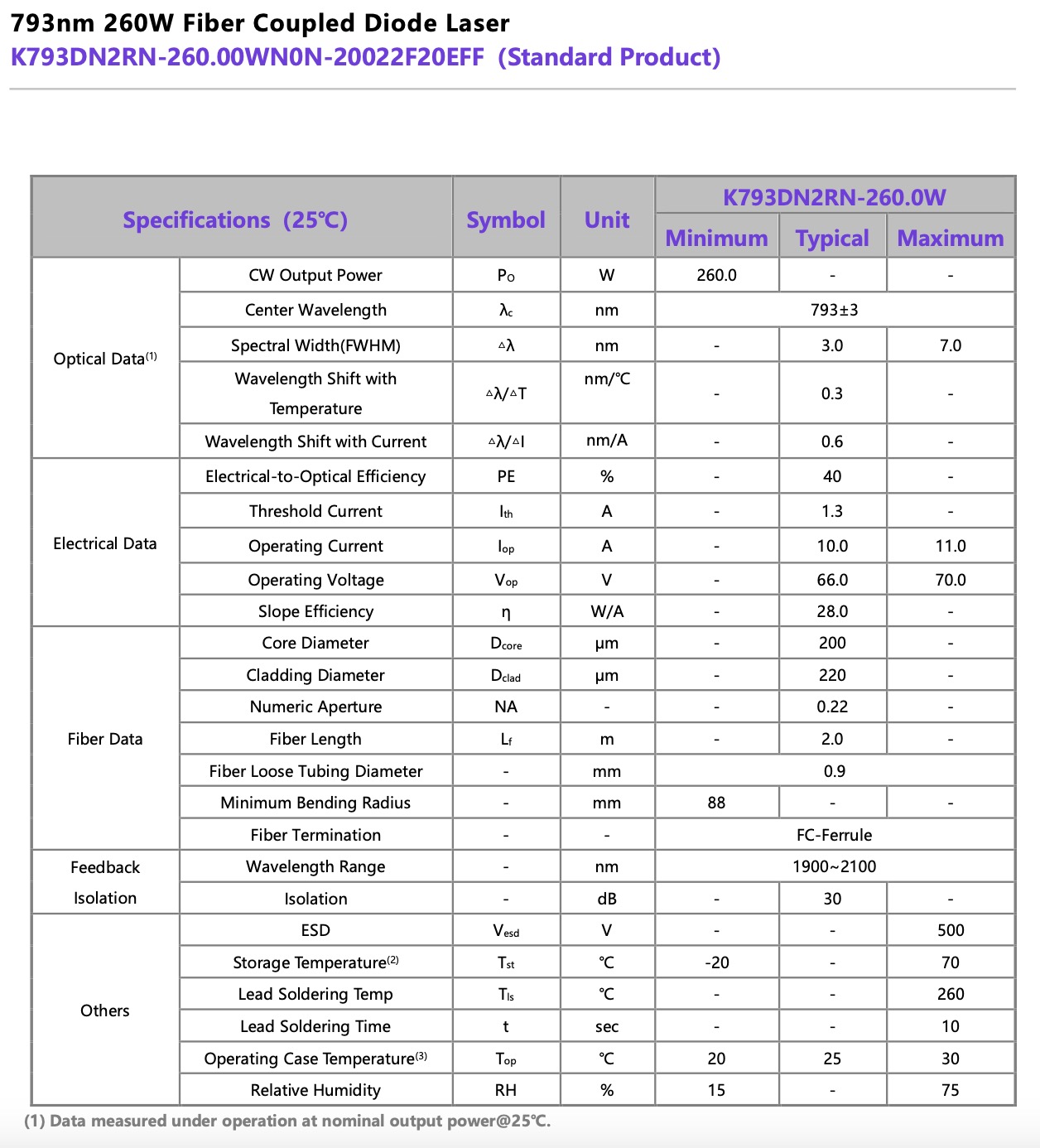

Performance Parameter

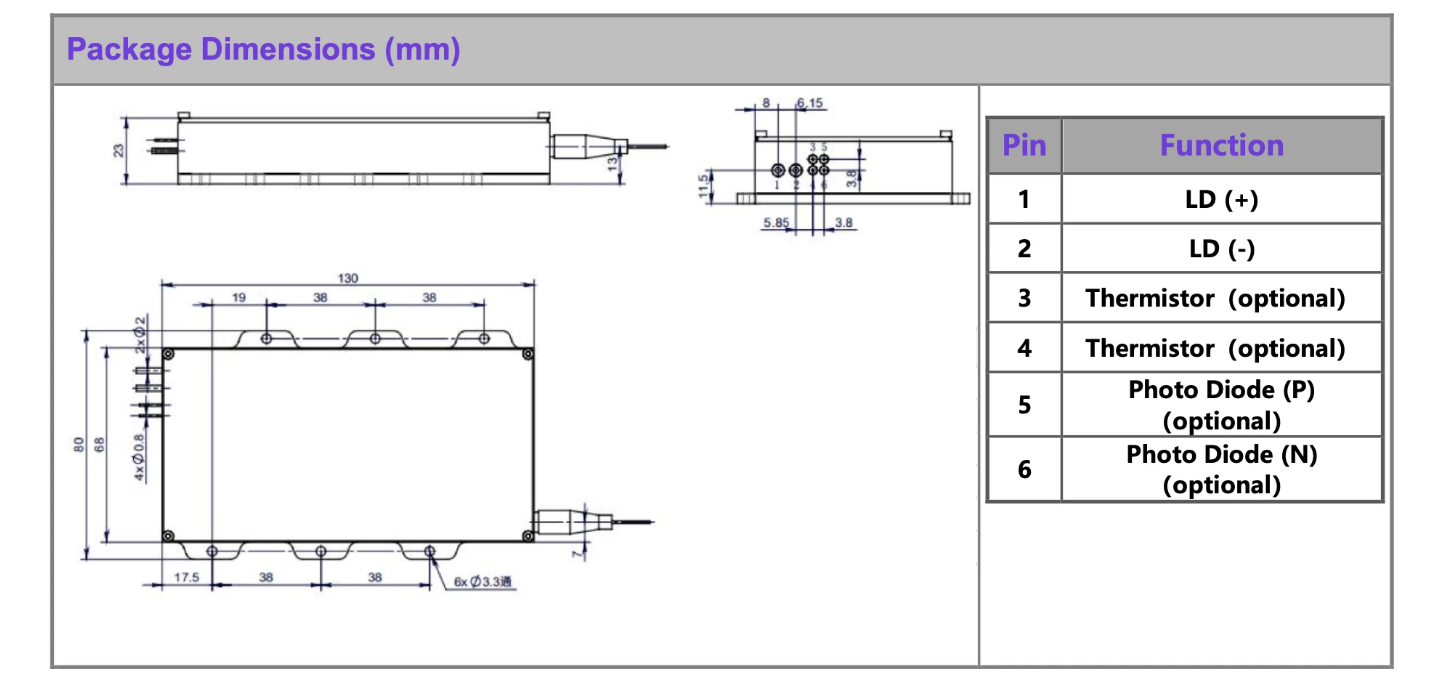

Structure Size (mm)
Instructions for use
◆ Avoid eye and skin exposure to direct radiation during operation.
◆ ESD precautions must be taken during storage, transportation and operation.
◆ Short-circuit is required between pins during storage and transportation.
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
cutting the fiber.
◆ Laser diode must work with good cooling.
◆ Operation temperature ranges from 20℃ to 30℃ .
◆ Storage temperature ranges from -20℃ to +70℃.
