793nm-200W
BWT, founded in 2003, is committed to the mission of "let the dream drive the light", the vision of becoming the "Global leader in laser solutions", and the value of "Outstanding innovation", providing diode laser, fiber laser, ultra-fast laser products and solutions to global customers.BWT pursues continuous innovation and insists on autonomous and controllable advanced process and technology. With Beijing headquarters as the core, BWT has successively established production and R&D centers in Jiangsu, and Shenzhen, and Invested in the construction of an automated and intelligent production base in Tianjin. To build a high level of technical strength and product quality, BWT set up a German subsidiary in 2020, and taking a solid step for the internationalization of R&D, production and technological innovation.
Main features：
Feedback protection
1900nm~2100nm
Optical fiber numerical aperture
0.22NA
Fiber core diameter
200μm
Output power
200W
Wavelength
793±1nm
Application：

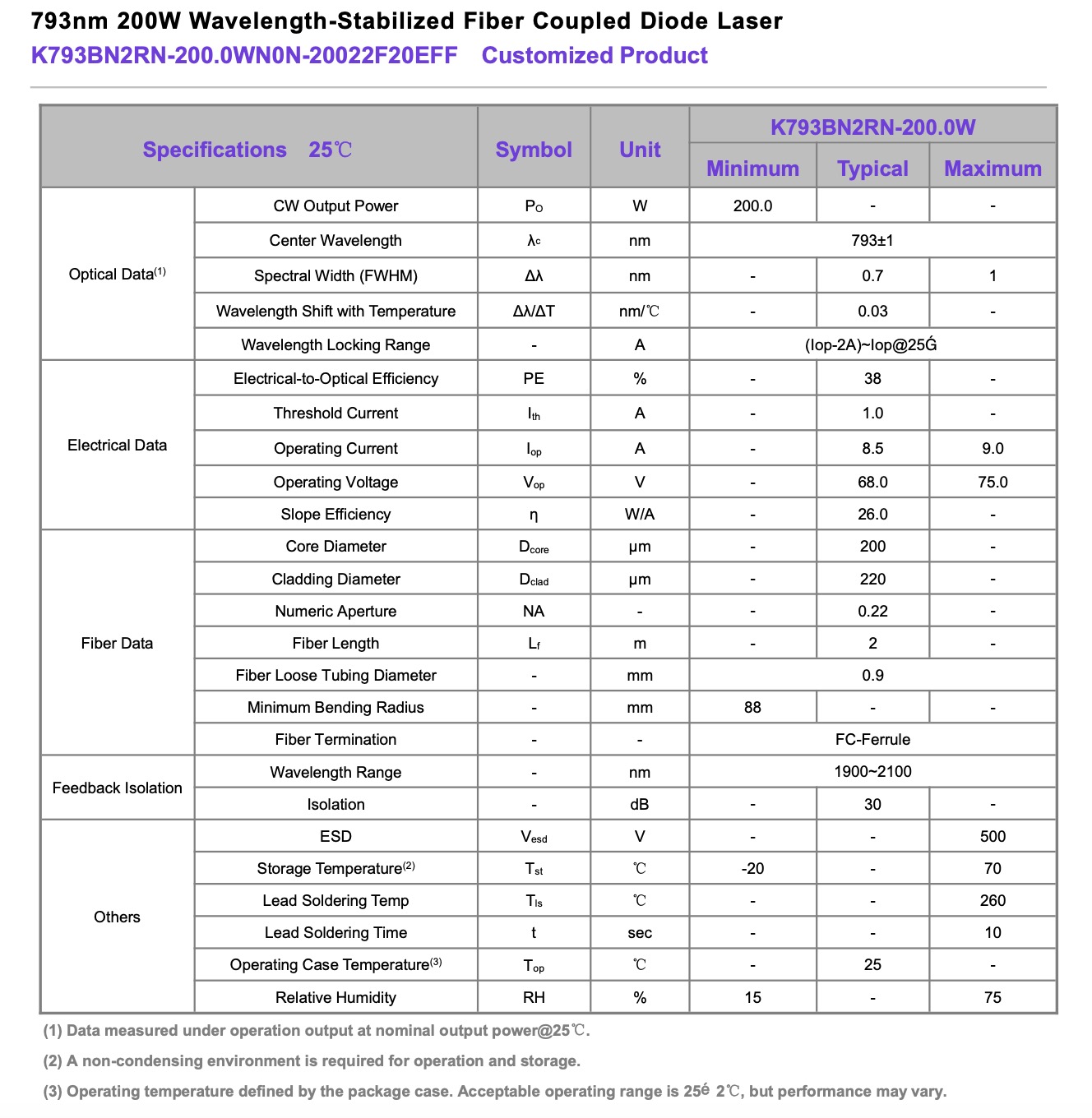

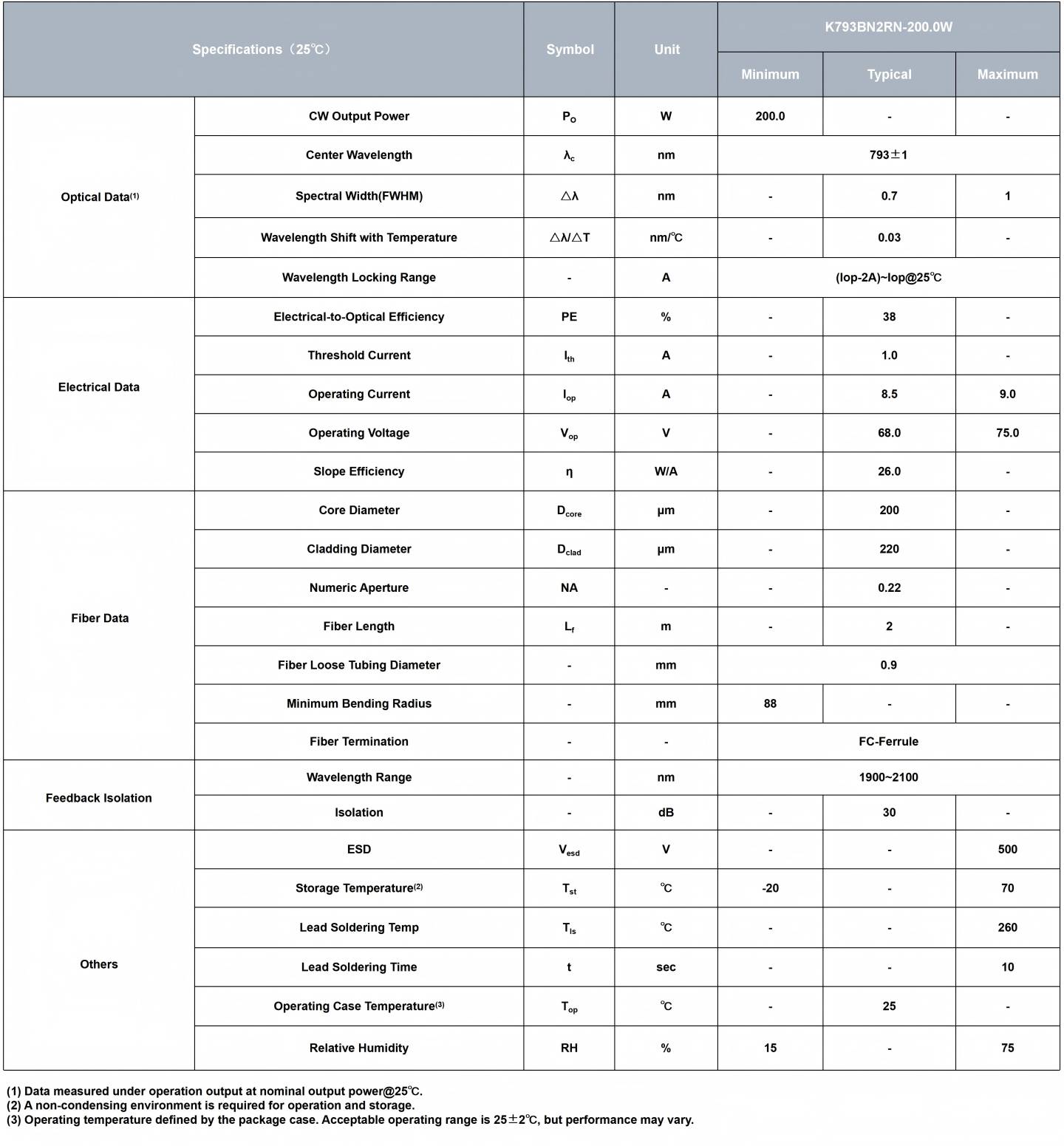

Performance Parameter
Structure Size (mm)
Instructions for use
-Avoid eye and skin exposure to direct radiation during operation.
-ESD precautions must be taken during storage, transportation and operation.
-Short-circuit is required between pins during storage and transportation.
-Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
u Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and
cutting the fiber.
-Use constant current power supply to avoid surge current during operation.
-Laser diode must be used according to the specifications.
-Laser diode must work with good cooling.
-Operation temperature ranges from 20℃ to 30℃ .
-Storage temperature ranges from -20℃ to +70℃.
-ESD precautions must be taken during storage, transportation and operation.
-Short-circuit is required between pins during storage and transportation.
-Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
u Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and
cutting the fiber.
-Use constant current power supply to avoid surge current during operation.
-Laser diode must be used according to the specifications.
-Laser diode must work with good cooling.
-Operation temperature ranges from 20℃ to 30℃ .
-Storage temperature ranges from -20℃ to +70℃.
