520nm-1W
Lighting series diode lasers have the advantages of a uniform light spot, kilometer-long lighting distance, long lifetime, high reliability, and maintenance free. It is widely used in night vision, machine vision, laser display, laser show, and other special LD lighting applications.Main features：
Wavelength
520nm
Output power
1W
Fiber core diameter
105μm
Optical fiber numerical aperture
0.22 NA
Application：

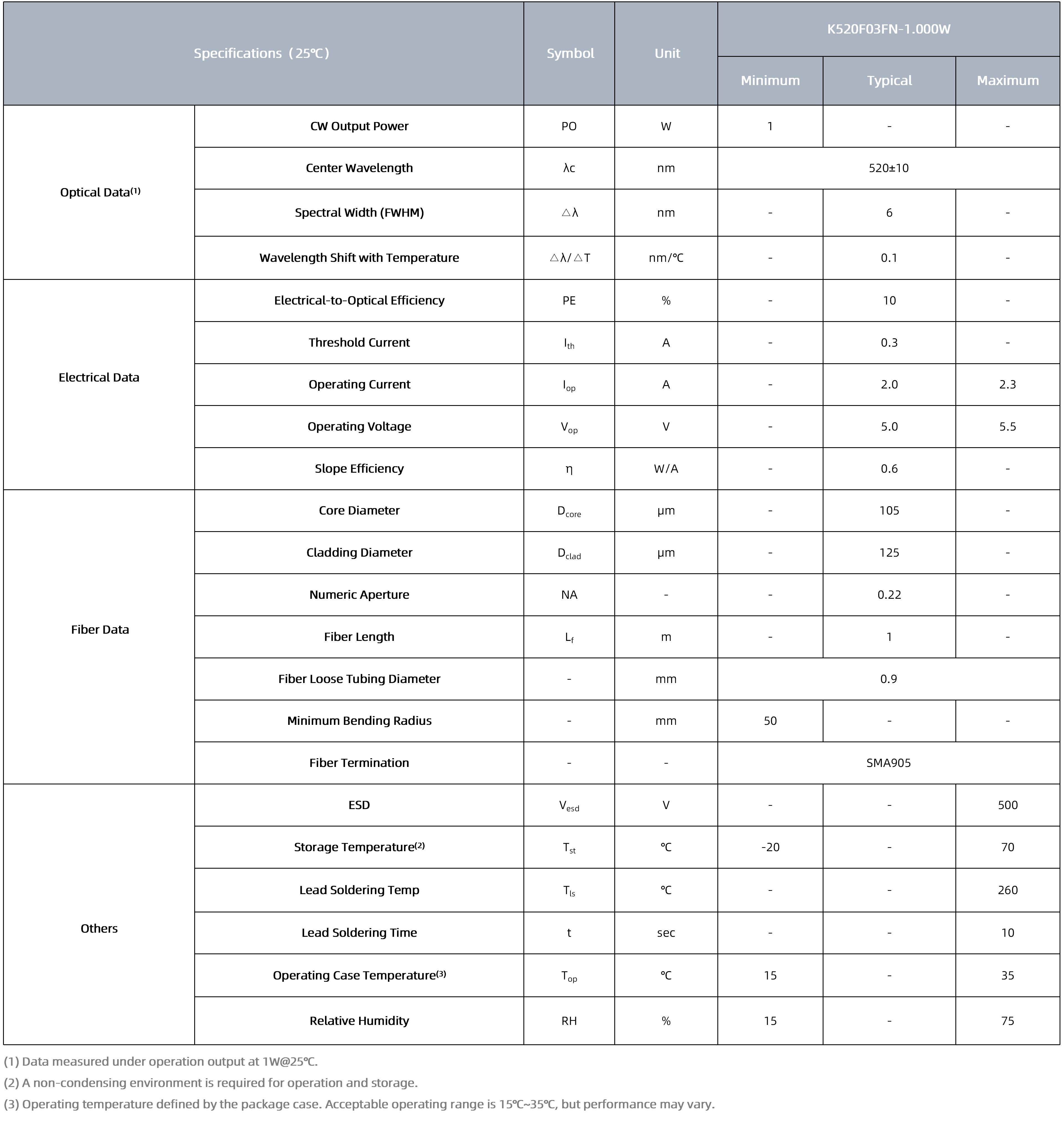

Performance Parameter

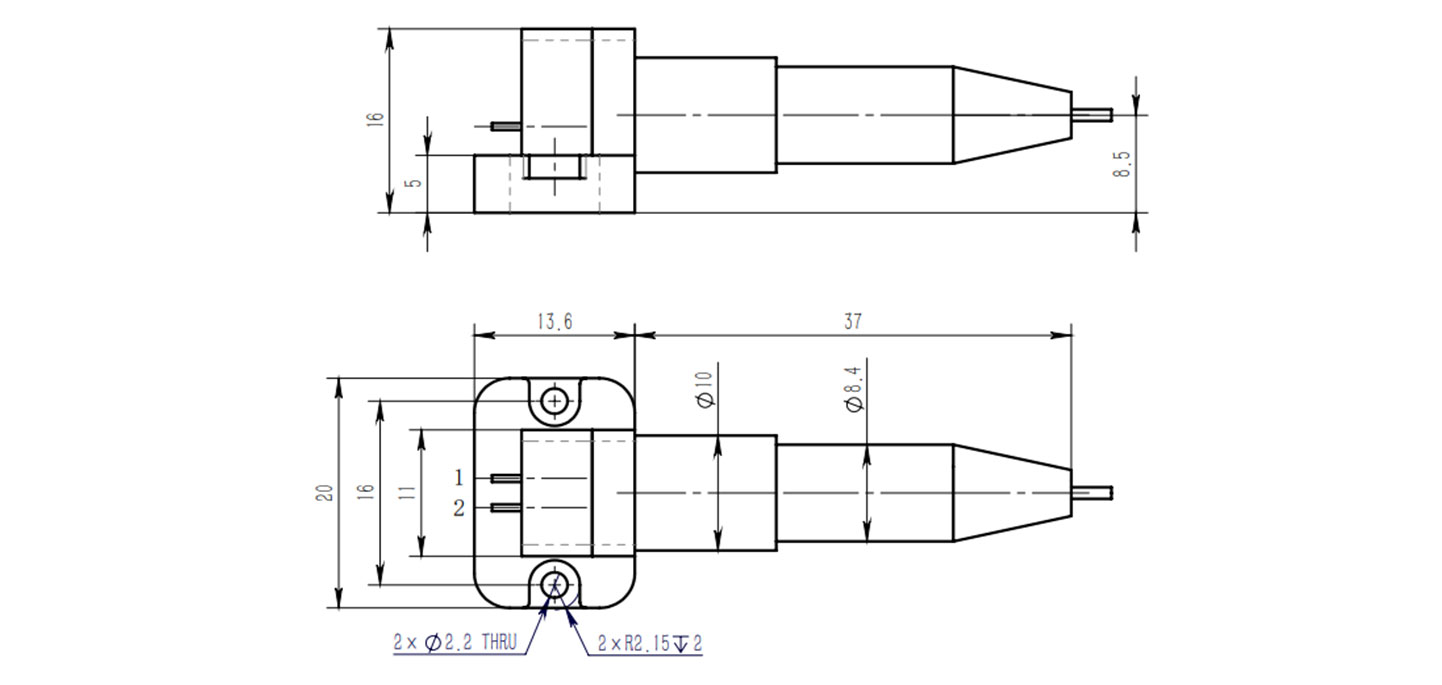

Structure Size (mm)
Instructions for use
-Avoid eye and skin exposure to direct radiation during operation.
-ESD precautions must be taken during storage, transportation and operation.
-Short-circuit is required between pins during storage and transportation.
-Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
-Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and
cutting the fiber.
-Use constant current power supply to avoid surge current during operation.
-Laser diode must be used according to the specifications.
-Laser diode must work with good cooling.
-Operation temperature ranges from 15℃ to 35℃ .
-Storage temperature ranges from -20℃ to +70℃.
-ESD precautions must be taken during storage, transportation and operation.
-Short-circuit is required between pins during storage and transportation.
-Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
-Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and
cutting the fiber.
-Use constant current power supply to avoid surge current during operation.
-Laser diode must be used according to the specifications.
-Laser diode must work with good cooling.
-Operation temperature ranges from 15℃ to 35℃ .
-Storage temperature ranges from -20℃ to +70℃.
