445nm-50W
The wavelength of the blue diode laser is 445nm, the power range is from 800mW to 1000W, and a variety of fiber cores are available (105um~400um). Because of its high photon energy advantage, it has the characteristics of high absorption rate and no spatter in the processing of metal materials such as copper. It has irreplaceable advantages in the field of 3C electronics and lithium battery welding.Main features：
Wavelength
445nm
Output power
50W
Fiber core diameter
105µm
Optical fiber numerical aperture
0.22 NA
Application：
Performance Parameter

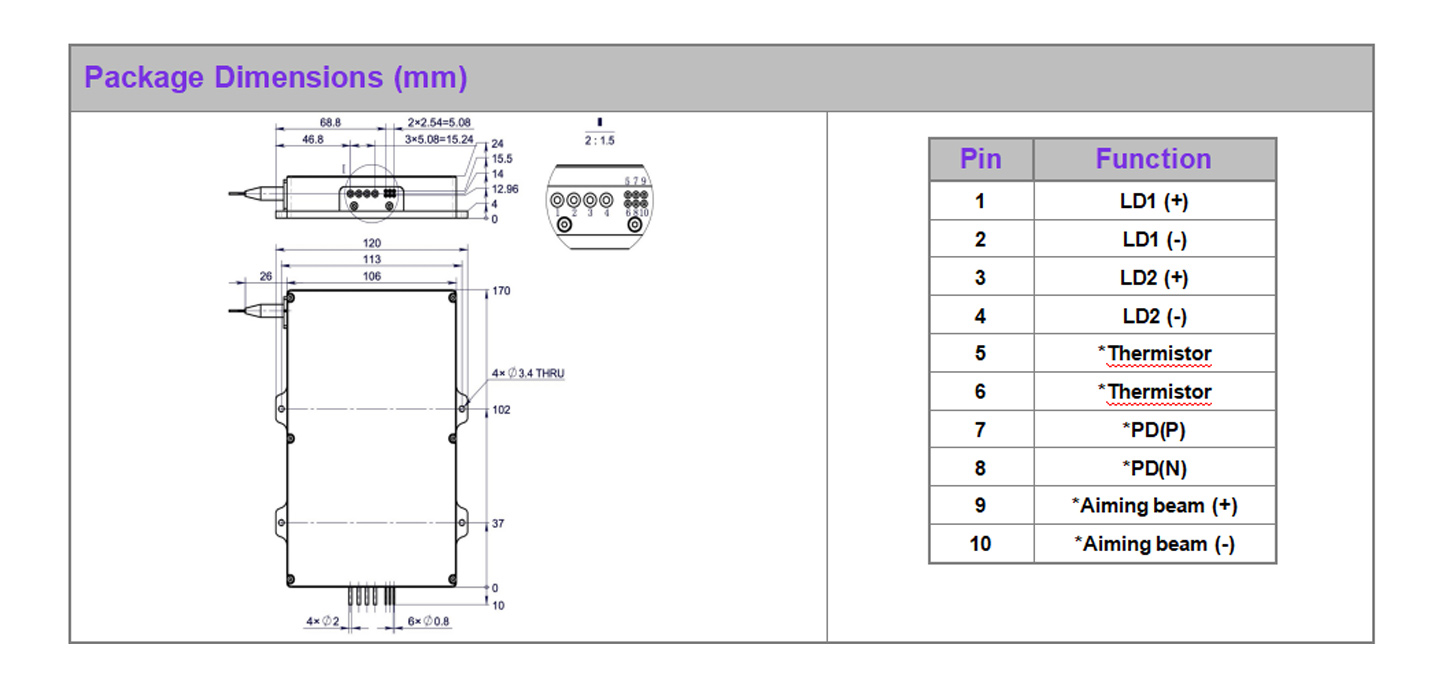

Structure Size (mm)
Instructions for use
- Avoid eye and skin exposure to direct radiation during operation.
- ESD precautions must be taken during storage, transportation and operation.
- For lasers with operating currents above 6A, connect leads by soldering. The soldering point should be as close to the middle of the pins as possible, with a temperature below 260℃ and a soldering time of less than 10 seconds.
- Before operating the laser, ensure that the fiber output end is properly cleaned. Follow safety protocols when handling and cutting fiber to avoid injury.
- Use a constant current power supply and avoid surges during operation.
- Operate within the rated current and power levels.
- Ensure proper cooling during operation.
- The operating temperature range is 15℃ to 30℃.
- The storage temperature range is -20℃ to +70℃.
- ESD precautions must be taken during storage, transportation and operation.
- For lasers with operating currents above 6A, connect leads by soldering. The soldering point should be as close to the middle of the pins as possible, with a temperature below 260℃ and a soldering time of less than 10 seconds.
- Before operating the laser, ensure that the fiber output end is properly cleaned. Follow safety protocols when handling and cutting fiber to avoid injury.
- Use a constant current power supply and avoid surges during operation.
- Operate within the rated current and power levels.
- Ensure proper cooling during operation.
- The operating temperature range is 15℃ to 30℃.
- The storage temperature range is -20℃ to +70℃.
