DS3 Fiber Coupled Diode Laser System

The semiconductor laser subsystem can display power, current, temperature, pulse width, frequency, etc. through the LCD panel, and can be adjusted by the panel or remotely controlled by the RS232 serial port. The system has a high degree of integration and is easy to operate, and is mainly used in scientific research, system integration and other fields. At the same time, it can also meet other customized needs.

Main features:

Wavelength

976nm

Output power

300W

Fiber core diameter

200μm

Optical fiber numerical aperture

0.22NA

Multiple optional cabinet size

Application:

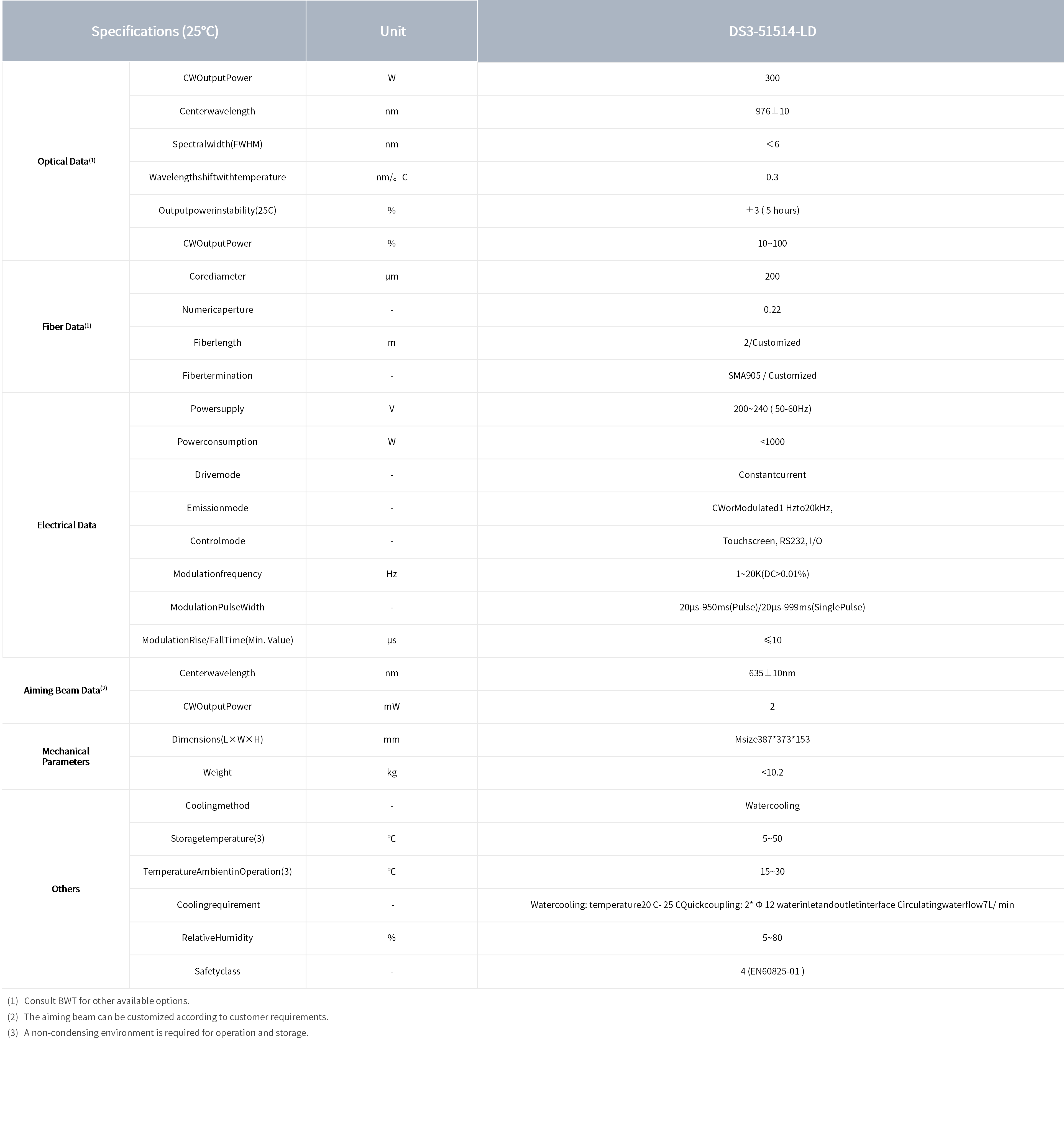

Performance Parameter

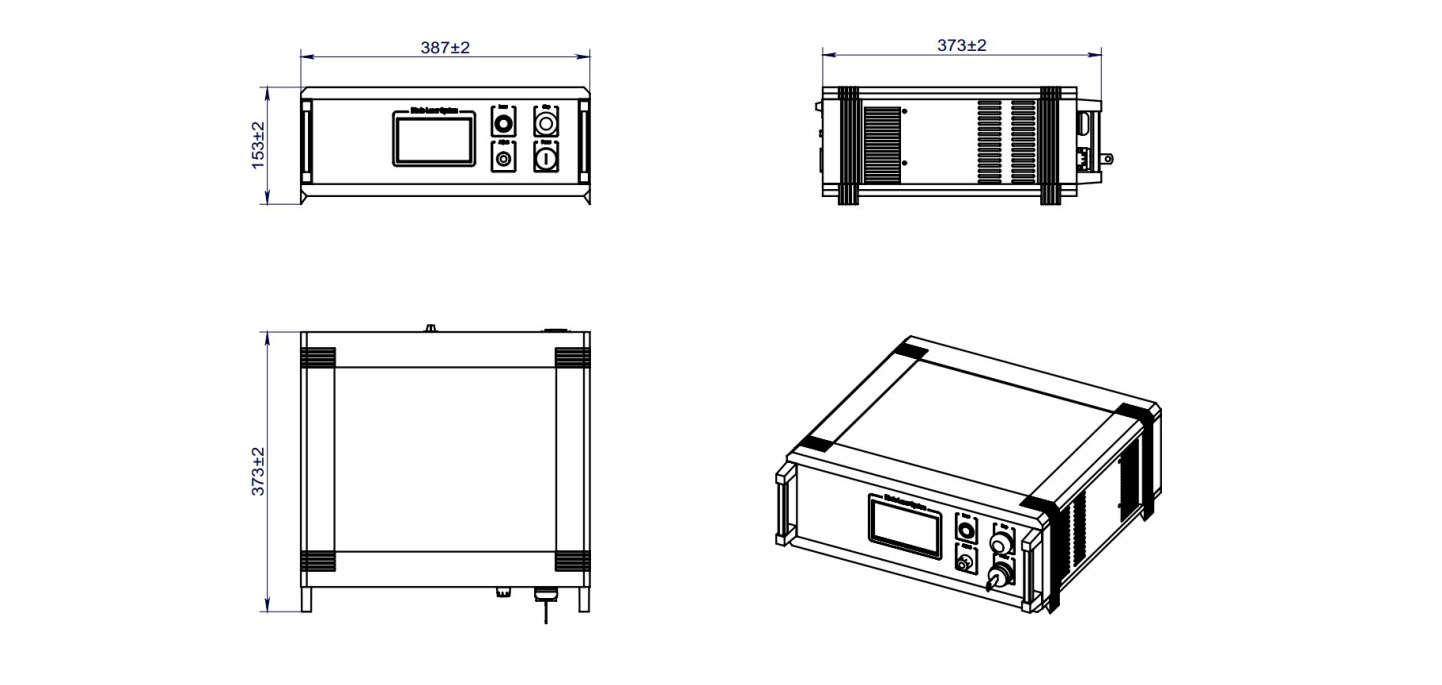

Structure Size (mm)

Instructions for use

- Avoid eye and skin exposure to direct radiation during operation.
- Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
- Laser diode must be used according to the specifications.
- Temperature Ambient in Operation ranges from 15℃ to 30℃.
- Storage temperature ranges from 5℃ to 50℃.

Application
