976nm-600W (VBG)
This type of diode laser is used in fiber laser pump source applications. Based on a variety of coupling technology solutions and thermal management, the products can meet the power, brightness, wavelength control, power-to-weight ratio, and other special requirements of different customers.The wavelength range of the product covers a variety of pumping bands required by fiber lasers, and the optional power range is wide.
Main features：
Wavelength
976±1nm
Output power
600W
Fiber core diameter
200μm
Optical fiber numerical aperture
0.22 NA
Feedback protection
1020nm~1200nm
Application：

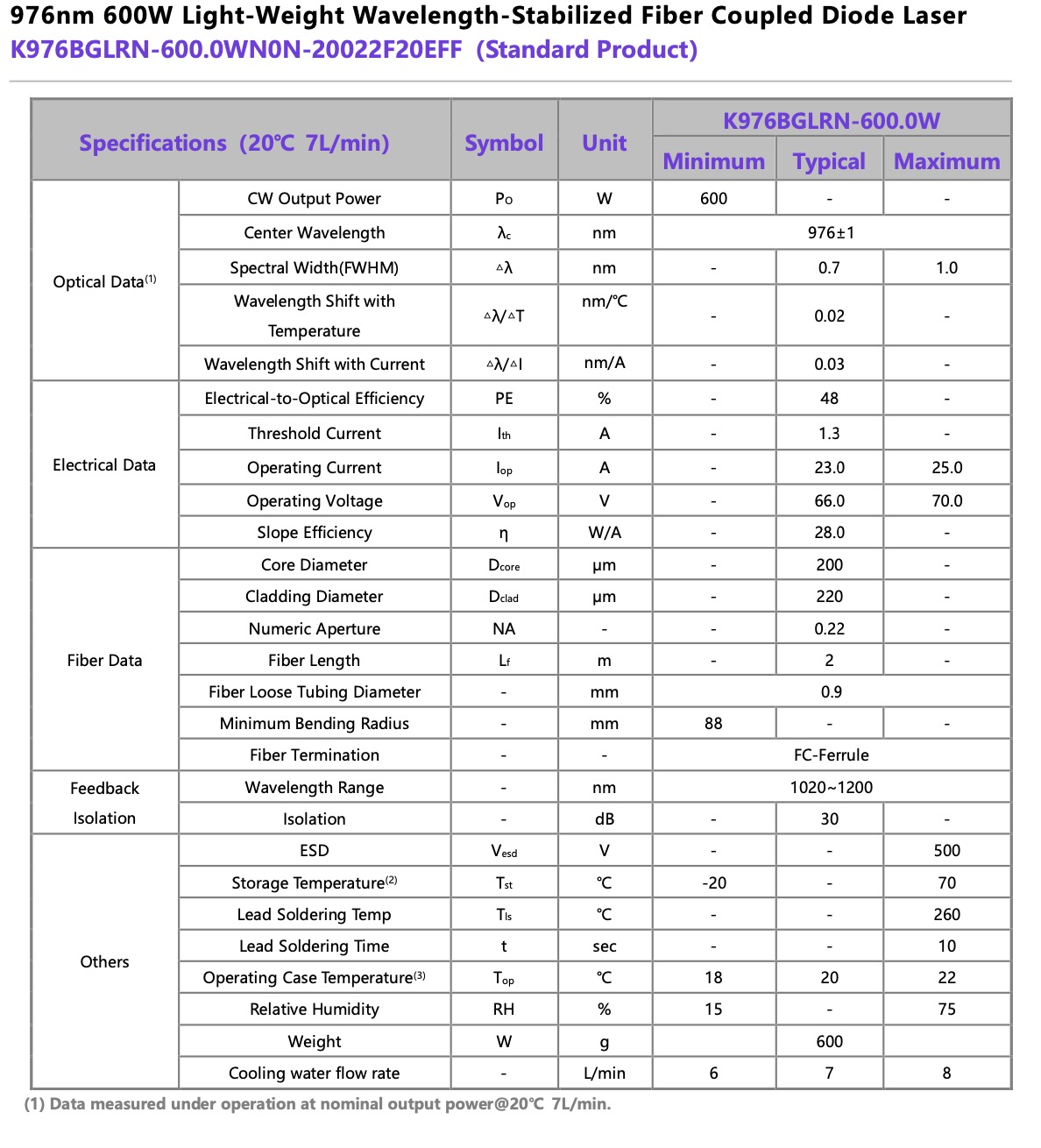

Performance Parameter

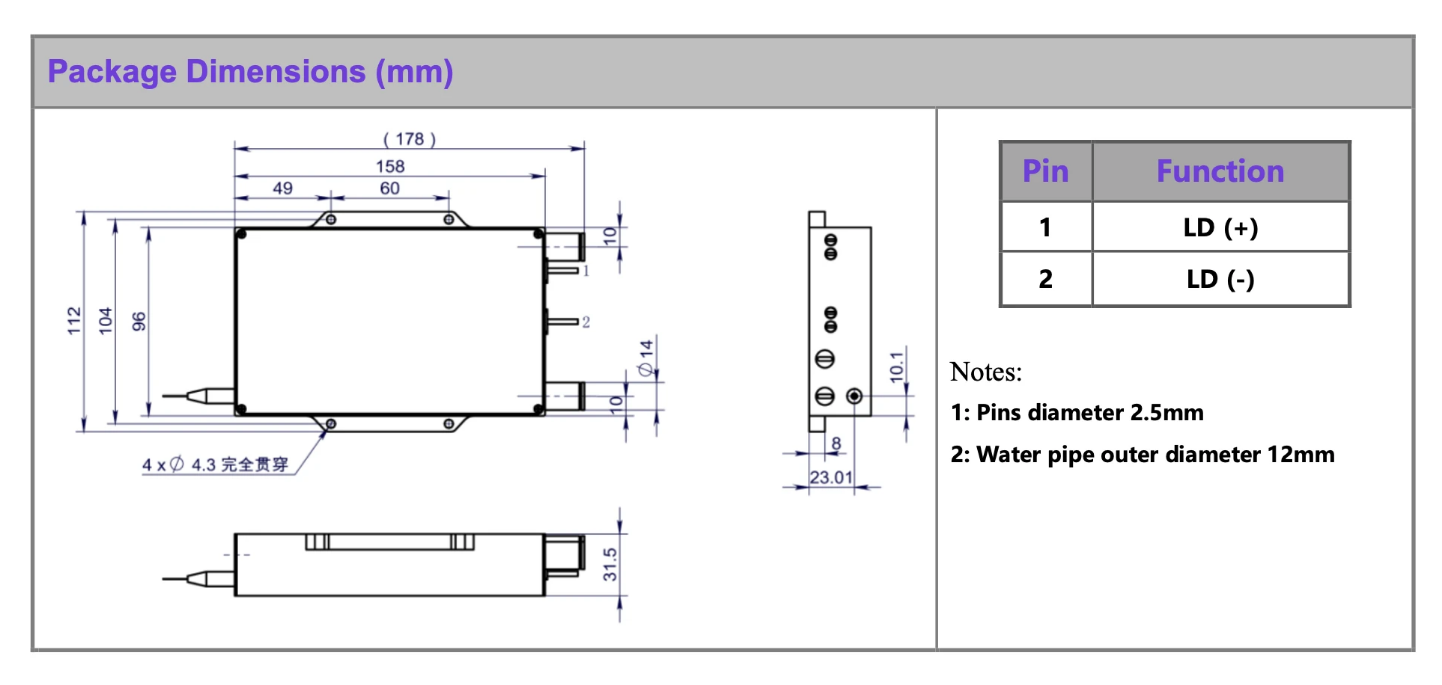

Structure Size (mm)
Instructions for use
◆ Avoid eye and skin exposure to direct radiation during operation.
◆ ESD precautions must be taken during storage, transportation and operation.
◆ Short-circuit is required between pins during storage and transportation.
to the middle of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
cutting the fiber.
◆ Laser diode must work with good cooling.
◆ Operation temperature ranges from 20℃ to 30℃ .
◆ Storage temperature ranges from -20℃ to +70℃.
