405nm Fiber Coupled Diode Laser System 50W

405 semiconductor laser subsystem can provide power output from 12W to 50W, widely used in LDI/maskless lithography and other applications; The system is fully designed as a 400um pluggable fiber, which is easy for user maintenance; The use of spot homogenization scheme can be more suitable for LDI applications.

Main features:



Output power


Fiber core diameter


Optical fiber numerical aperture

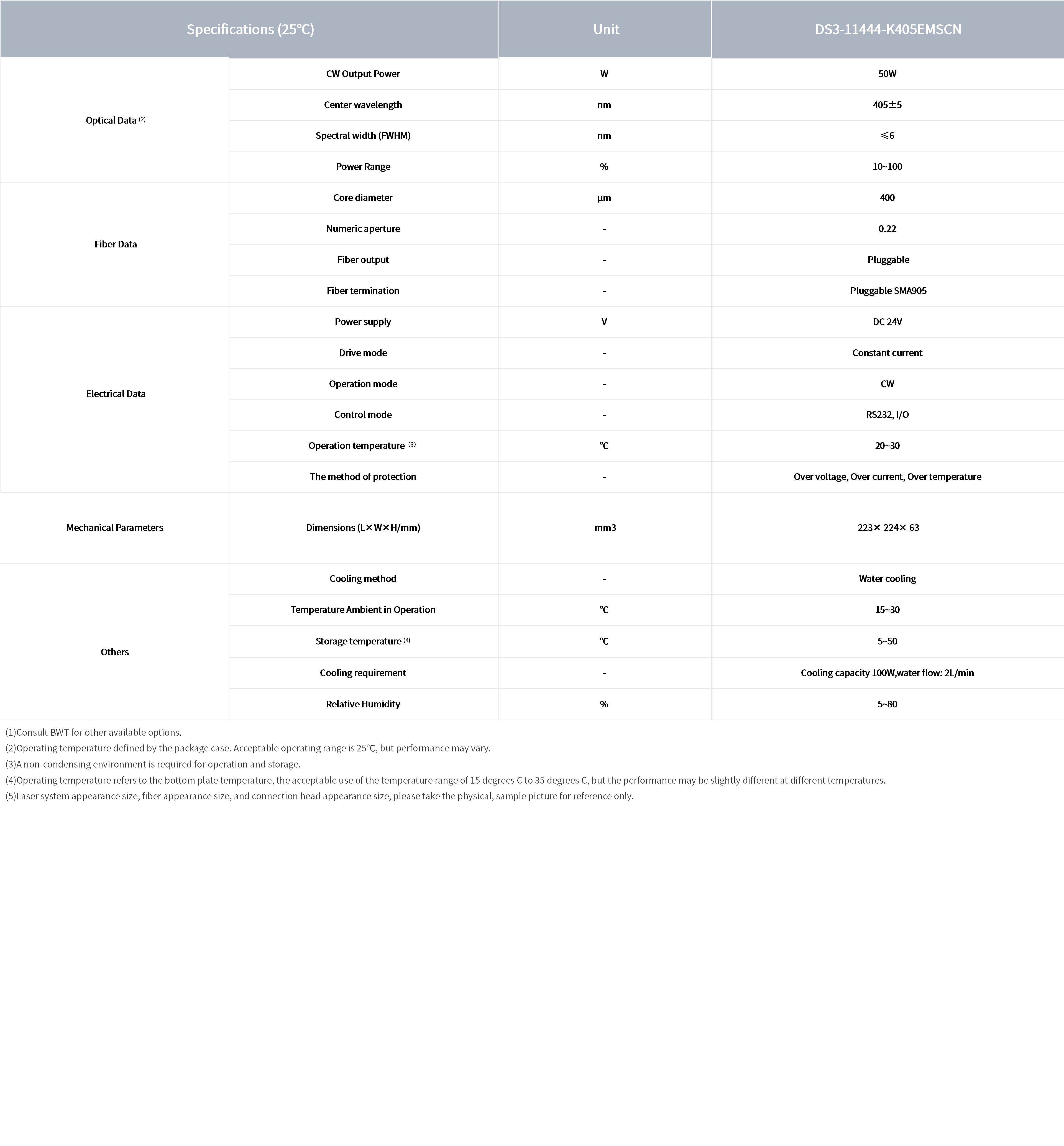

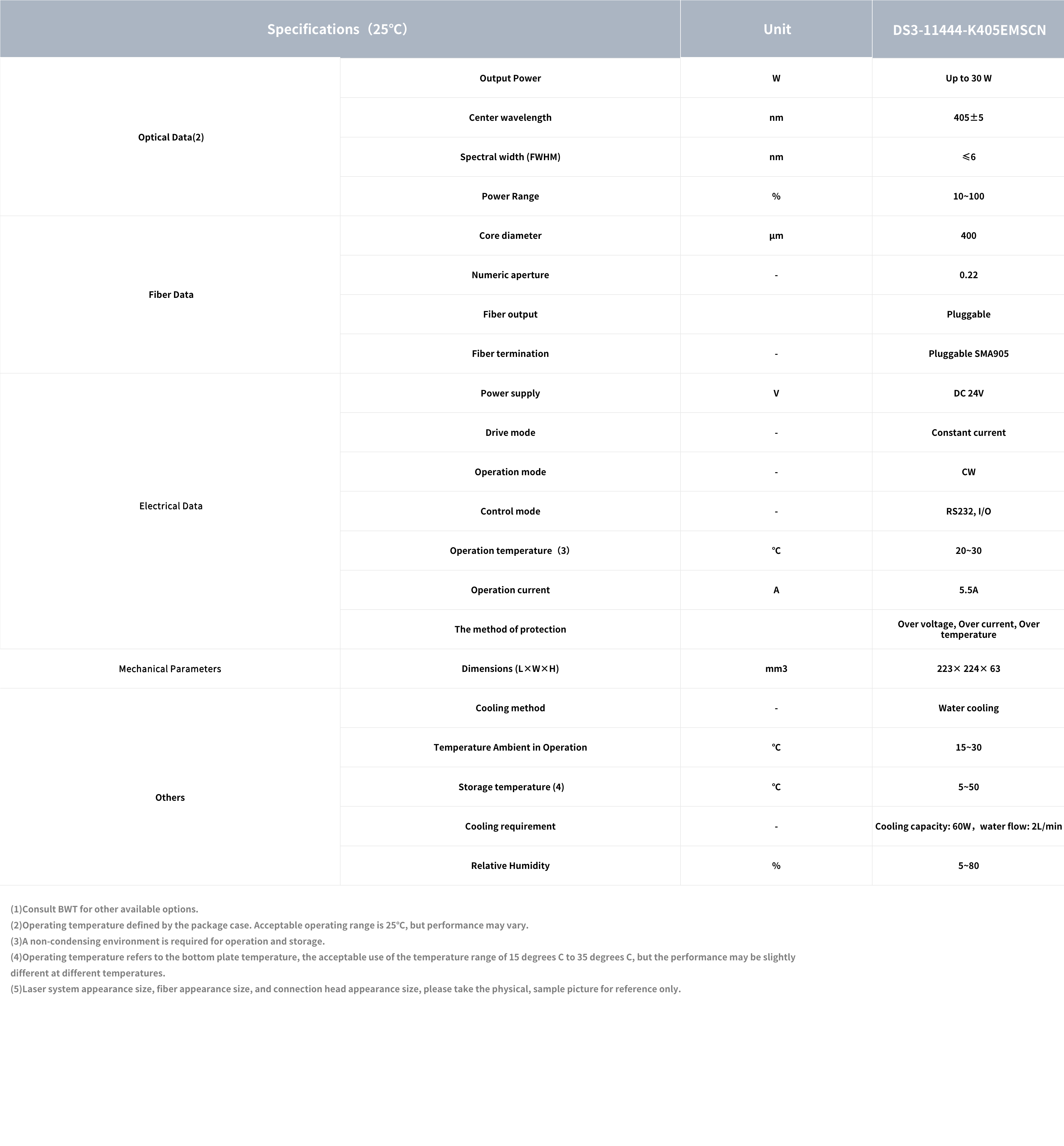

Performance Parameter

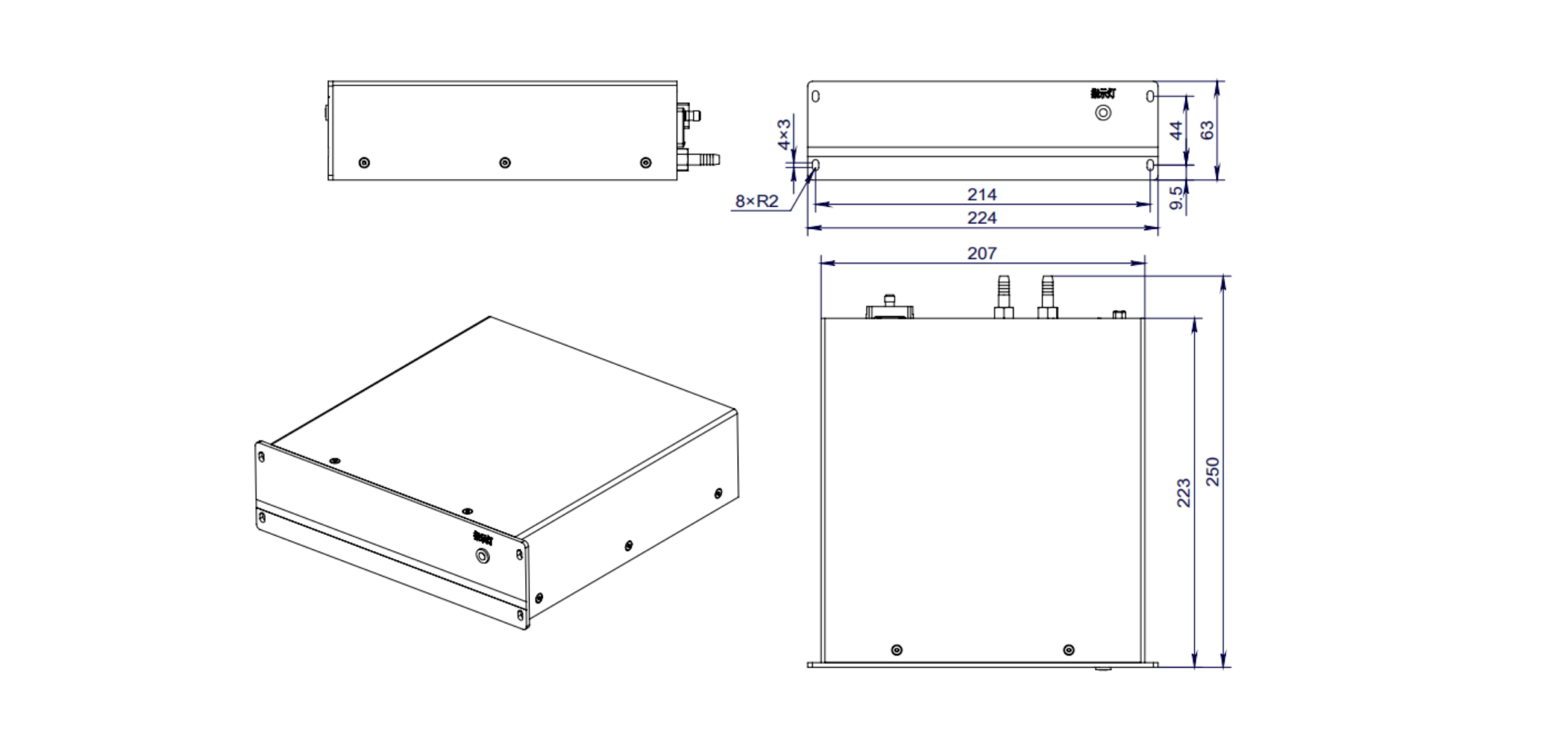

Structure Size (mm)

Instructions for use

-Avoid eye and skin exposure to direct radiation during operation.
-Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
-Laser diode must be used according to the specifications.
-Temperature Ambient in Operation ranges from 15℃ to 30℃.
-Storage temperature ranges from 5℃ to 50℃.
